ODIN ANALOG INTERCONNECT

Description

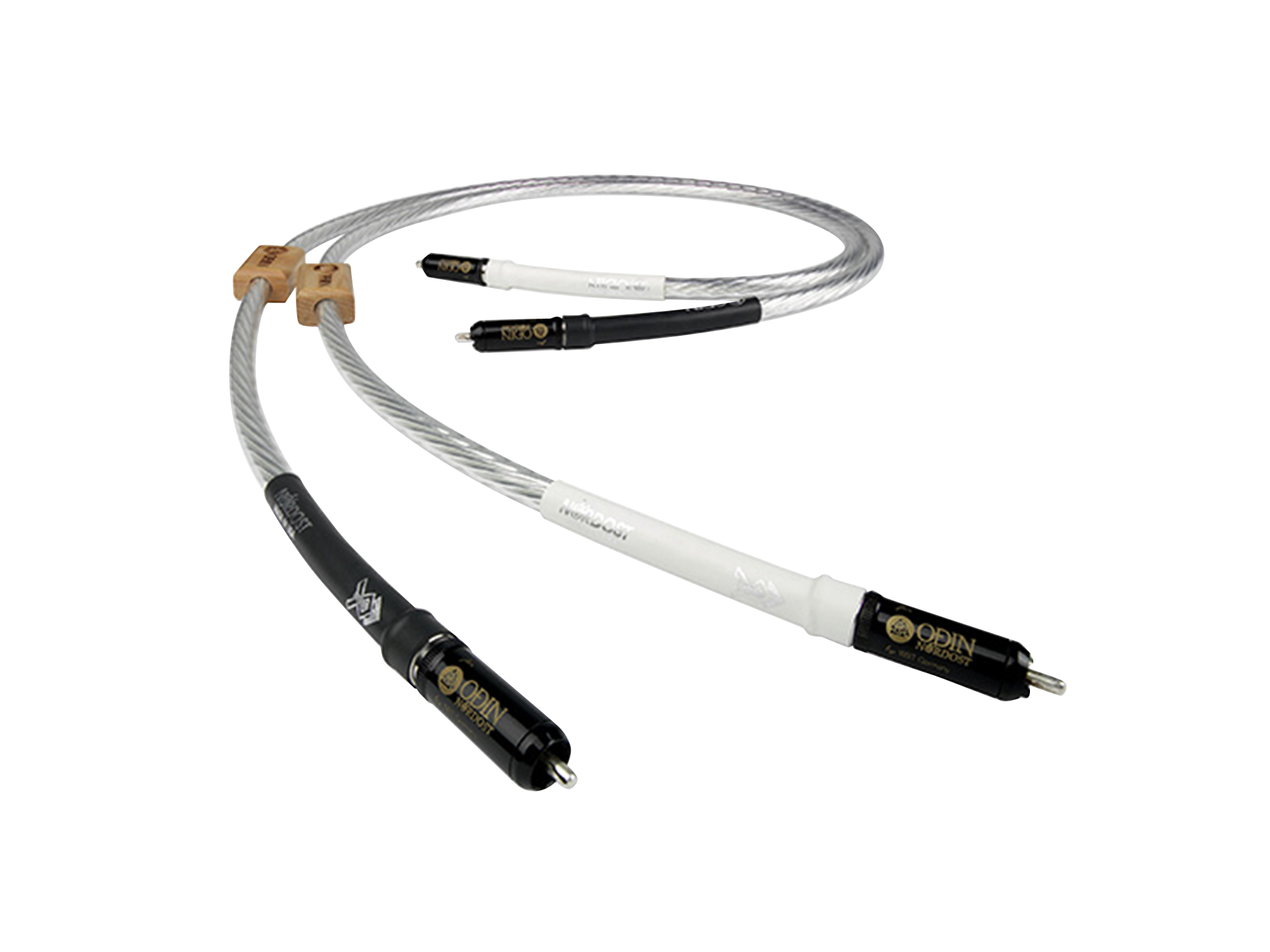

The Odin Supreme Reference Interconnect uses eight of our revolutionary Total Signal Control (TSC) tubes – each carrying a 23 AWG Dual Mono-Filament conductor with 85 microns of extruded silver over 99.999999% oxygen free copper. The eight conductors are precisely wound in a spiral pattern around a central spacer, which contains two extruded silver over OFC drain wires to create a cable of unprecedented consistency and geometrical precision. The result is perfect shielding yet manageable flexibility. Odin Interconnect cables are either offered with a special oversized 10 mm WBT NextGen silver-plated, copper RCA connector or a specially machined rhodium-plated Furutech XLR connector for balanced operation. These connectors offer a low-mass design that reduces eddy currents and produces the best available interface and impedance matching between the cable and the attached components.

Specifications

Insulation: High purity class 1.003 extruded Fluorinated Ethylene Propylene (FEP)
Construction: Mechanically tuned lay, length and Dual Mono-Filament, TSC design
Conductors: 8 x 23 AWG
Material: Silver-plated 99.999999% solid core OFC
Capacitance: 19.0pF/ft
Inductance: 0.07μH/ft
Overall Shield Coverage: 100% Individually shielded total coverage
Velocity of Propagation: 90%
Termination: WBT NextGen silver-plated RCA, Furutech rhodium-plated XLR
